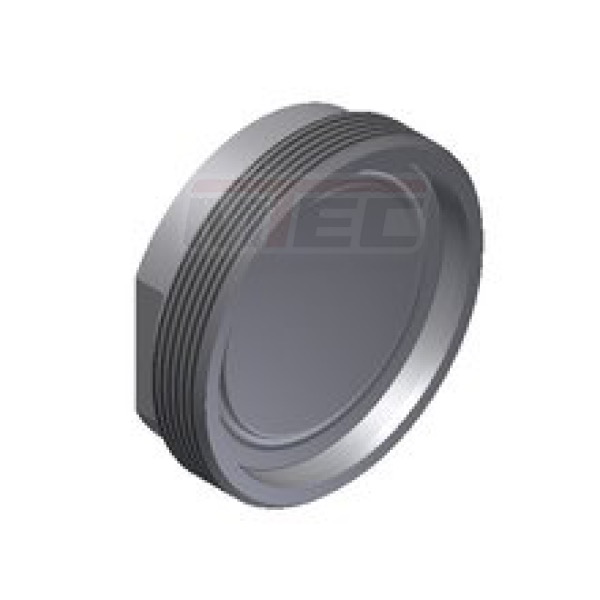

[DIN] Blind-Gewindestutzen 11864-1 Form A - (Aseptik-Typ)
Art.Nr. 101744
Blind-Gewindestutzen 11864-1 Form A - (Aseptik-Typ)

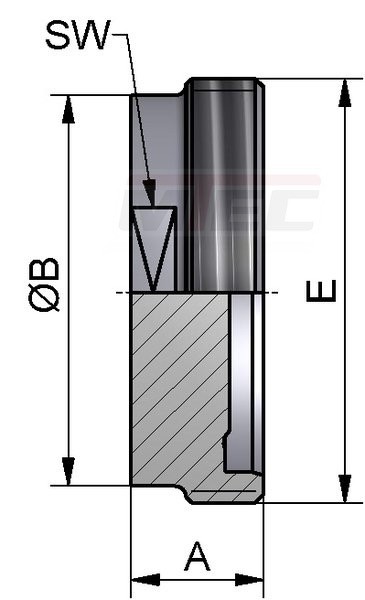

| DN | Werkstoff | Rd [E] | A | B | E | Werkstoff | ArtNr | |||
|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 1.4404 V4A | Rd28x1/8" | 24 | 23 | Rd28x1/8" | 316 | 338231 | |||
| 15 | 1.4404 V4A | Rd34x1/8" | 24 | 28 | Rd34x1/8" | 316 | 338232 | |||
| 20 | 1.4404 V4A | Rd44x1/6" | 24 | 34 | Rd44x1/6" | 316 | 338233 | |||
| 40 | 1.4404 V4A | Rd65x1/6" | 24 | 58 | Rd65x1/6" | 316 | 338236 | |||
| 65 | 1.4404 V4A | Rd95x1/6" | 28 | 87 | Rd95x1/6" | 316 | 338238 | |||
| 100 | 1.4404 V4A | Rd130x1/4 | 30 | 120 | Rd130x1/4 | 316 | 338240 | |||
| 25 | 1.4404 V4A | Rd52x1/6" | 24 | 44 | Rd52x1/6" | 316 | 338234 | |||
| 32 | 1.4404 V4A | Rd58x1/6" | 24 | 53 | Rd58x1/6" | 316 | 338235 | |||
| 50 | 1.4404 V4A | Rd78x1/6" | 24 | 72 | Rd78x1/6" | 316 | 338237 | |||
| 80 | 1.4404 V4A | Rd110x1/4" | 28 | 100 | Rd110x1/4" | 316 | 338239 |
