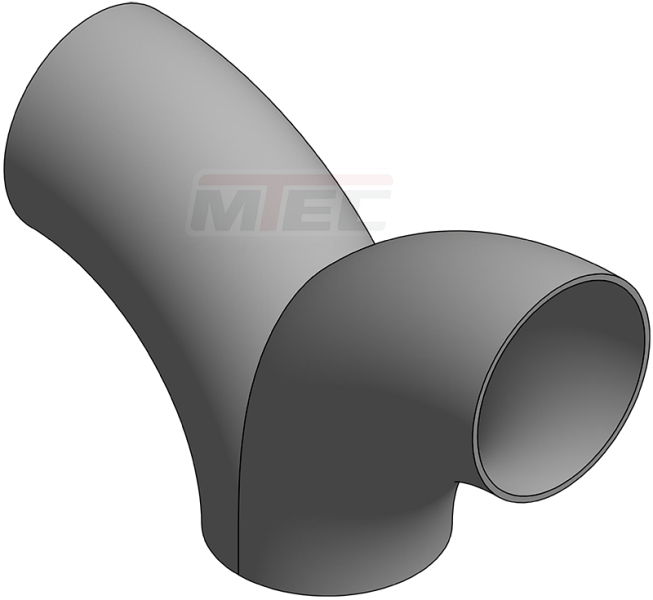

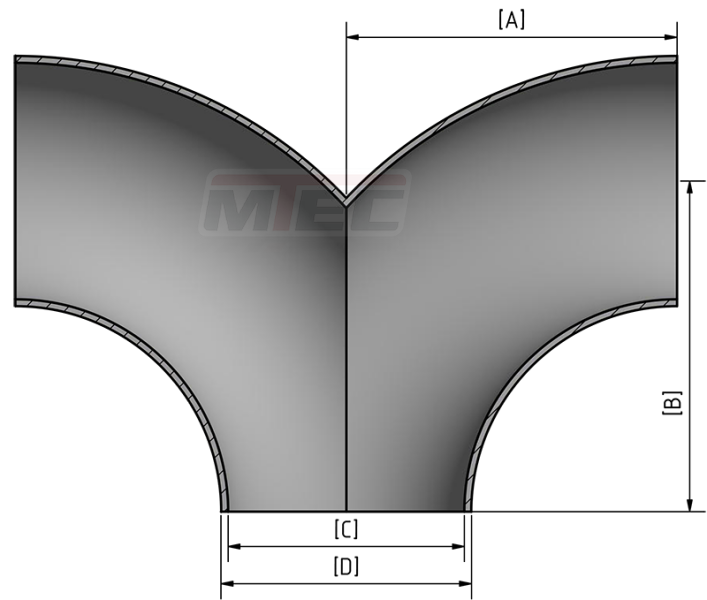

[DIN] Doppel-T-Bogen mit Schweißende
Art.Nr. 101583
Doppel-T-Bogen mit Schweißende ( nach DIN 11852)
| Nennweite | Werkstoff | Oberfläche | A | B | C | Werkstoff | ArtNr | |||
|---|---|---|---|---|---|---|---|---|---|---|
| DN 15 | 1.4404 V4A | metallblank | 35,0 | 34,0 | 16,0 | 316 | 314162 | |||
| DN 20 | 1.4404 V4A | metallblank | 40,0 | 39,0 | 20,0 | 316 | 314163 | |||
| DN 32 | 1.4404 V4A | metallblank | 55,0 | 54,0 | 32,0 | 316 | 314165 | |||
| DN 40 | 1.4404 V4A | metallblank | 60,0 | 59,0 | 38,0 | 316 | 314166 | |||
| DN 65 | 1.4404 V4A | metallblank | 80,0 | 79,0 | 66,0 | 316 | 314168 | |||
| DN 80 | 1.4404 V4A | metallblank | 90,0 | 89,0 | 81,0 | 316 | 314169 | |||
| DN 100 | 1.4404 V4A | metallblank | 100,0 | 99,0 | 100,0 | 316 | 314170 | |||
| DN 125 | 1.4404 V4A | metallblank | 187,5 | 186,5 | 125,0 | 316 | 314171 | |||
| DN 150 | 1.4404 V4A | metallblank | 225,0 | 224,0 | 150,0 | 316 | 314172 | |||
| DN 25 | 1.4404 V4A | metallblank | 50,0 | 49,0 | 26,0 | 316 | 314164 | |||
| DN 50 | 1.4404 V4A | metallblank | 70,0 | 69,0 | 50,0 | 316 | 314167 |
