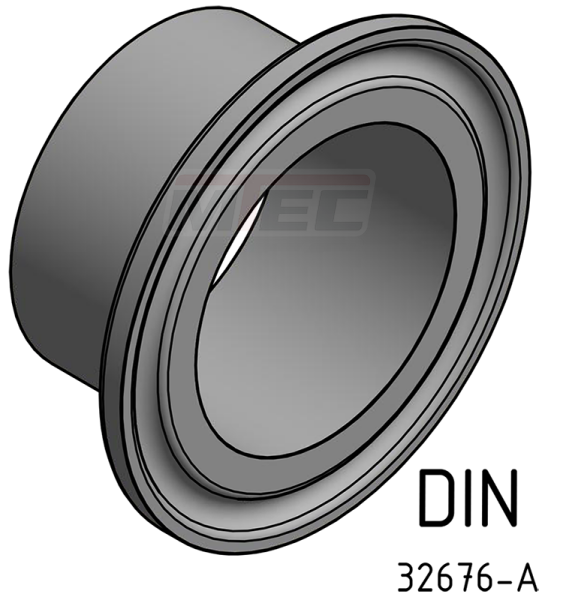

[DIN] Tri-Clamp-Stutzen (KK) 32676-A
EUR 10,76 - EUR 392,99
inkl. 19 % USt zzgl. Versandkosten
Sofort versandfähig, ausreichende Stückzahl
Art.Nr. 100003
Clampverbindung DIN 32676-A
| Nennweite | Werkstoff | Teller Ø | A | B | C | D | Werkstoff | ArtNr | ||
|---|---|---|---|---|---|---|---|---|---|---|
| DN Mini | 1.4404 V4A | 25 mm | 29 | 10 | 13 | 25 | 316 | 305958 | ||
| DN 10 | 1.4404 V4A | 34 mm | 18 | 10 | 13 | 34 | 316 | 216866 | ||
| DN 15 | 1.4404 V4A | 34 mm | 18 | 16 | 19 | 34 | 316 | 216867 | ||
| DN 20 | 1.4404 V4A | 34 mm | 18 | 20 | 23 | 34 | 316 | 216868 | ||
| DN 25 | 1.4404 V4A | 50,5 mm | 21,5 | 26 | 29 | 50,5 | 316 | 216869 | ||
| DN 32 | 1.4404 V4A | 50,5 mm | 21,5 | 32 | 35 | 50,5 | 316 | 216870 | ||
| DN 40 | 1.4404 V4A | 50,5 mm | 21,5 | 38 | 41 | 50,5 | 316 | 216871 | ||
| DN 50 | 1.4404 V4A | 64 mm | 21,5 | 50 | 53 | 64 | 316 | 216872 | ||
| DN 65 | 1.4404 V4A | 91 mm | 28 | 66 | 70 | 91 | 316 | 216873 | ||
| DN 80 | 1.4404 V4A | 106 mm | 28 | 81 | 85 | 106 | 316 | 216874 | ||
| DN 100 | 1.4404 V4A | 119 mm | 28 | 100 | 104 | 119 | 316 | 216875 | ||
| DN 125 | 1.4404 V4A | 155 mm | 28 | 125 | 129 | 155 | 316 | 216876 | ||
| DN 150 | 1.4404 V4A | 183 mm | 28 | 150 | 154 | 183 | 316 | 216877 | ||
| DN 200 | 1.4404 V4A | 233,5 mm | 28 | 200 | 204 | 233,5 | 316 | 231417 | ||
| DN 250 | 1.4404 V4A | 268 mm | 28 | 250 | 254 | 268 | 316 | 305951 | ||
| DN 300 | 1.4404 V4A | 319 mm | 28 | 300 | 304 | 319 | 316 | 313037 |
