(R2) Nippel mit Zollgewinde mit schweißende
Art.Nr. 101046

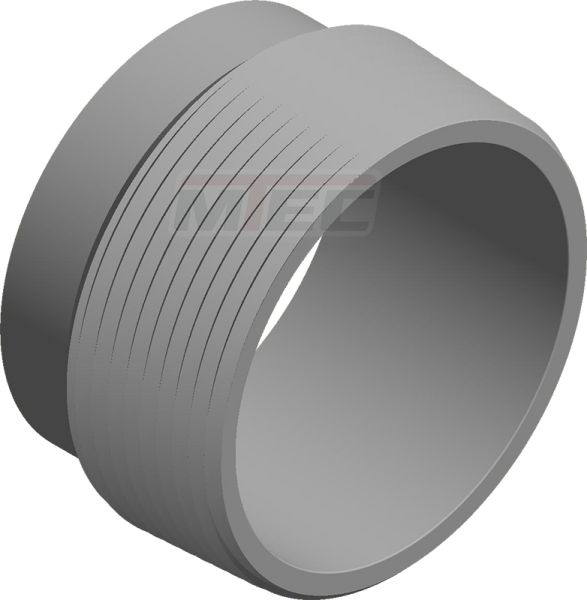

Nippel mit Zollgewinde für DIN 11850 (konisch)
| Nennweite | Werkstoff | Typ | Gewinde (D) | A | B | C | D | Werkstoff | ArtNr | |
|---|---|---|---|---|---|---|---|---|---|---|
| DN 10 | 1.4404 V4A | R2-Nippel | 1/4" | 23 | 10 | 13 | 11,44-13,15(+-) | 316 | 313322 | |
| DN 10 | 1.4404 V4A | R2-Nippel | 3/8" | 23,5 | 10 | 13 | 14,90-16,66(+-) | 316 | 313323 | |
| DN 25 | 1.4404 V4A | R2-Nippel | 1" | 30 | 26 | 29 | 30,29-33,24(+-) | 316 | 303717 | |
| DN 15 | 1.4404 V4A | R2-Nippel | 1/2" | 28 | 16 | 19 | 18,61-20,95(+-) | 316 | 303715 | |
| DN 50 | 1.4404 V4A | R2-Nippel | 2" | 34 | 50 | 53 | 56,65-59,61(+-) | 316 | 303720 | |
| DN 20 | 1.4404 V4A | R2-Nippel | 3/4" | 28 | 26 | 29 | 30,29-33,24(+-) | 316 | 303716 | |
| DN 25 | 1.4404 V4A | R2-Nippel | 3/4" | 28 | 26 | 29 | 24,11-26,44(+-) | 316 | 312596 | |
| DN 32 | 1.4404 V4A | R2-Nippel | 1-1/4" | 35 | 32 | 35 | 38,9-41,91(+-) | 316 | 303718 | |
| DN 40 | 1.4404 V4A | R2-Nippel | 1-1/2" | 35 | 38 | 41 | 44,84-47,8(+-) | 316 | 303719 | |
| DN 65 | 1.4404 V4A | R2-Nippel | 2-1/2" | 40 | 66 | 70 | 72,22-75,18(+-) | 316 | 305866 | |
| DN 80 | 1.4404 V4A | R2-Nippel | 3" | 41,4 | 81 | 85 | 84,92-87,88(+-) | 316 | 305867 | |
| DN 100 | 1.4404 V4A | R2-Nippel | 4" | 48 | 100 | 104 | 110,07-113,43(+-) | 316 | 305868 |
