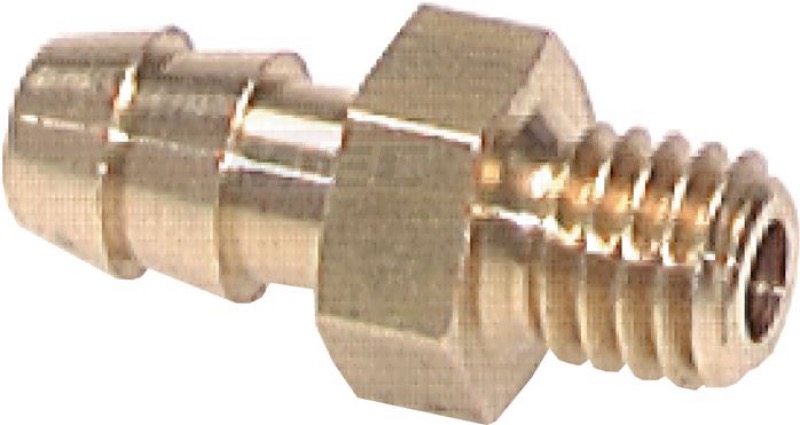

Gewindetülle M 5-4mm, 16 Messing

EUR 0,64 - EUR 0,71

inkl. 19 % USt zzgl. Versandkosten

Gewicht 0 kg

Bitte Anrufen

Bitte Anrufen


  • Gewinde / Schlauch Ø: M5 / 4 mm

  • Werkstoff: Messing

Art.Nr. 214931

Mengenrabatt

Anzahl Einzelpreis Ersparnis
1 EUR 0,71
2-4 EUR 0,71 -1 %
5-9 EUR 0,70 -2 %
10-49 EUR 0,69 -4 %
50-99 EUR 0,67 -6 %
>= 100 EUR 0,64 -10 %

Zylindrische BSP Gewindetüllen
Gewinde M5 mit Schlauchtülle 4mm
Betriebsdruck 16Bar
Gewinde Schlauch-Ø innen PN SW Gewinde Typ Sonstiges Werkstoff ArtNr
M5 4 mm 16 bar 7,0 MS 214931
M3 2 mm 40 bar 316 214895
M3 3 mm 40 bar 316 214896
M5 3 mm 16 bar 7,0 MS 214928
M5 3 mm 16 bar ohne Innenkonus MSV 214929
M5 4 mm 40 bar 316 214930
M5 4 mm 16 bar ohne Innenkonus MSV 214932
M5 6 mm 16 bar 7,0 MS 214934
1/8" 4 mm 16 bar 14,0 G MS 214879
1/8" 4 mm 40 bar G 316 214878
1/8" 4 mm 16 bar G MSV 214880
1/8" 4 mm 10 bar G FDA PP 214881
1/8" 6 mm 16 bar 14,0 G MS 214883
1/8" 6 mm 40 bar G 316 214882
1/8" 6 mm 16 bar G MSV 214884
1/8" 6 mm 10 bar G FDA PP 214885
1/8" 8 mm 16 bar 14,0 G MS 214886
1/8" 8 mm 10 bar G FDA PP 214887
1/8" 9 mm 40 bar G 316 214888
1/8" 9 mm 16 bar G MSV 214890
1/4" 4 mm 16 bar 17,0 G MS 214865
1/4" 4 mm 40 bar G 316 214864
1/4" 4 mm 16 bar G MSV 214866
1/4" 4 mm 10 bar G FDA PP 214867
1/4" 6 mm 16 bar 17,0 G MS 214869
1/4" 6 mm 16 bar G MSV 214870
1/4" 6 mm 10 bar G FDA PP 214871
1/4" 8 mm 10 bar G FDA PP 214873
1/4" 9 mm 25 bar G Stvz 214877
1/4" 9 mm 16 bar 17,0 G MS 214875
1/4" 9 mm 40 bar G 316 214874
1/4" 10 mm 16 bar G MSV 214857
1/4" 10 mm 10 bar G FDA PP 214858
1/4" 12 mm 16 bar G MSV 214859
1/4" 12 mm 10 bar G FDA PP 214860
1/4" 13 mm 25 bar G Stvz 214863
1/4" 13 mm 40 bar G 316 214861
3/8" 4 mm 16 bar 19,0 G MS 214919
3/8" 4 mm 40 bar G 316 214918
3/8" 4 mm 10 bar G FDA PP 214920
3/8" 6 mm 16 bar 19,0 G MS 214922
3/8" 6 mm 40 bar G 316 214921
3/8" 6 mm 10 bar G FDA PP 214923
3/8" 8 mm 10 bar G FDA PP 214924
3/8" 9 mm 16 bar 19,0 G MS 214926
3/8" 9 mm 40 bar G 316 214925
3/8" 10 mm 10 bar G FDA PP 214912
3/8" 12 mm 16 bar G MSV 214916
3/8" 12 mm 10 bar G FDA PP 214913
3/8" 13 mm 40 bar G 316 214914
1/2" 4 mm 10 bar G FDA PP 214848
1/2" 6 mm 16 bar 24,0 G MS 214850
1/2" 6 mm 10 bar G FDA PP 214851
1/2" 9 mm 40 bar G 316 214853
1/2" 9 mm 16 bar G MSV 214855
1/2" 10 mm 10 bar G FDA PP 214836
1/2" 12 mm 10 bar G FDA PP 214837
1/2" 13 mm 25 bar G Stvz 214841
1/2" 13 mm 40 bar G 316 214838
1/2" 13 mm 16 bar G MSV 214840
1/2" 16 mm 40 bar G 316 214842
1/2" 16 mm 16 bar G MSV 214843
1/2" 19 mm 25 bar G Stvz 214847
1/2" 19 mm 40 bar G 316 214844
1/2" 19 mm 16 bar G MSV 214846
3/4" 9 mm 16 bar 30,0 G MS 214911
3/4" 9 mm 40 bar G 316 214910
3/4" 13 mm 25 bar G Stvz 214900
3/4" 13 mm 16 bar 30,0 G MS 214898
3/4" 13 mm 40 bar G 316 214897
3/4" 13 mm 16 bar G MSV 214899
3/4" 16 mm 16 bar 30,0 G MS 214901
3/4" 16 mm 16 bar G MSV 214902
3/4" 19 mm 25 bar G Stvz 214906
3/4" 19 mm 40 bar G 316 214903
3/4" 19 mm 16 bar G MSV 214905
3/4" 25 mm 16 bar G MSV 214908
1" 19 mm 40 bar G 316 214819
1" 25 mm 40 bar G 316 214821
1" 25 mm 16 bar G MSV 214823
1" 32 mm 16 bar 37,0 G MS 214825
1" 32 mm 40 bar G 316 214824
11/4" 32 mm 16 bar 50,0 G MS 214833
11/4" 32 mm 40 bar G 316 214832
11/4" 38 mm 16 bar 42,0 G MS 214835
11/2" 32 mm 16 bar 48,0 G MS 214827
11/2" 32 mm 40 bar G 316 214826
11/2" 38 mm 16 bar 55,0 G MS 214829
11/2" 38 mm 40 bar G 316 214828
11/2" 50 mm 16 bar 58,0 G MS 214831
11/2" 50 mm 40 bar G 316 214830
21/2" 63 mm 16 bar 80,0 G MS 214893
3" 76 mm 16 bar 95,0 G MS 214894
1/4" 6 mm 40 bar G 316 214868
M5 6 mm 40 bar 316 214933
1/8" 9 mm 16 bar 14,0 G MS 214889
1/4" 8 mm 16 bar 17,0 G MS 214872
1/4" 9 mm 16 bar G MSV 214876
1/4" 10 mm 16 bar G MS 214856
1/4" 13 mm 16 bar 17,0 G MS 214862
3/8" 9 mm 16 bar G MSV 214927
3/8" 13 mm 25 bar G Stvz 214917
3/8" 13 mm 16 bar 19,0 G MS 214915
1/2" 6 mm 40 bar G 316 214849
1/2" 8 mm 10 bar G FDA PP 214852
1/2" 9 mm 16 bar 24,0 G MS 214854
1/2" 13 mm 16 bar 24,0 G MS 214839
1/2" 19 mm 16 bar 24,0 G MS 214845
3/4" 19 mm 16 bar 30,0 G MS 214904
3/4" 25 mm 16 bar 30,0 G MS 214907
3/4" 25 mm 25 bar G Stvz 214909
1" 19 mm 16 bar 26,0 G MS 214820
1" 25 mm 16 bar 38,0 G MS 214822
11/4" 38 mm 40 bar G 316 214834
2" 50 mm 16 bar 70,0 G MS 214892
2" 50 mm 40 bar G 316 214891
